2x SGO1v4 “Elite” ATA Swing Gate Opener Powerhead
2x PTX-6 Remote Controls
1x DCB-05 Control Board
1x ATA Smart Solar Kit (Gen2)

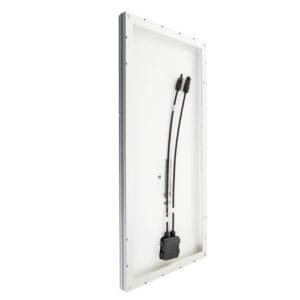

1x ATA 30W Solar Board

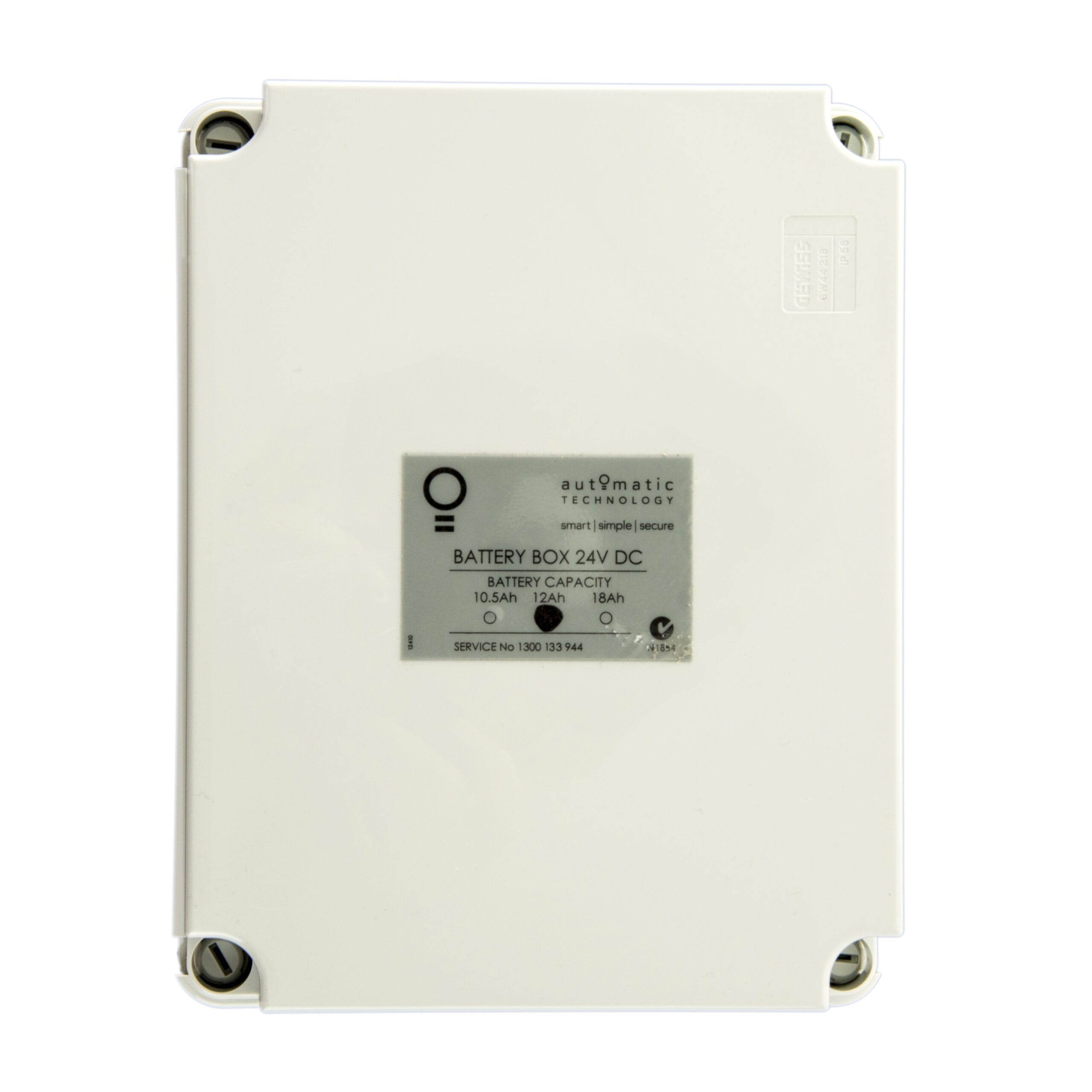

1x ATA Battery Pack (2x 12Ah)
Installation Instructions
$2,805.00
| Max Gate Length | 4m |
| Max Gate Weight | 300Kg |
| Model Number | SGO-1v4 |
| Peak Power | 200N |
| Standby Power | 2.2W |
| Opening Speed | 200mm/sec |
| MHz Frequency | FM 433.92 |
| Memory Register | 64 |
| Water Protection | IP44 |
| Warranty | 2 Year / 5000 Cycles |
| Mount Distance | Hinge Distance | ||||||||
| 0 | 50 | 100 | 125 | 150 | 180 | 200 | 220 | mm | |
| Sideroom Clearance | |||||||||
| 90 | 470 | 470 | 470 | 470 | 470 | 470 | 465 | 460 | mm |
| 120 | 450 | 470 | 480 | 470 | 465 | 460 | 435 | 425 | mm |
| 140 | 470 | 465 | 470 | 465 | 460 | 440 | 420 | 390 | mm |
| 200 | 470 | 465 | 445 | 430 | 400 | 350 | 390 | 250 | mm |
Having been in use for over 20 years, the Elite Swing range of gate openers are known for being one of Australia’s most reliable Single Swing Gate Kits. By being designed and originally engineered in Australia, the ATA Elite SGO-1v4 has been built for the Australian conditions and requirements.
As the replacement to the older Elite SGO1, SGO1v2 & SGO1v3, the SGO1v4 Elite offers improved add-on functionality. The SGO1v4 Elite is compatible with the ATA SmartPhone kit & WPE-3v1 Wireless PE Beams. The ATA SGO-1v4 Gate Kit is also compatible with the iSmartGate range of smartphone controllers.
The included PTX6 remote control features a rolling code encryption called TrioCode128, which generates a new code each time the button is pressed from trillions upon trillions of possibilities. By transmitting across three frequencies, the PTX6 all but eliminates interference problems, meaning your gate will open with every press of the button. Due to the remotes high security, only your garage door remotes will ever open your gate or door preventing code grabbing devices from ‘replaying’ the code to open your ATA Elite SGO-1v4.
Automate your gates and garage doors with ease using the ATA Smart Solar Kit. Designed for unpowered sites or eco-conscious users, this kit offers seamless compatibility with most Automatic Technology residential openers, making it the perfect choice for reliable and sustainable automation.
The ATA Smart Solar Kit harnesses the power of the sun to keep your gates and garage doors running smoothly, even in remote locations with no power access. This eco-friendly solution not only helps reduce your carbon footprint but also provides significant cost savings over time.
| SmartSolarV2 Technical Specifications*
|
Garage Door | Sliding Gate | Swing Gate |
| Load Voltage
|
24 | 24 | 24 |
| Load Continuous Current
|
3 – 5A | 5A | 5 – 10A |
| Number of Cycles per Day
|
10 | 10 | 10 |
| Average Cycle Time (Opening and Closing)
|
40 seconds | 90 seconds | 72 seconds |
| Max. Standby Current
Without P.E. Beams With P.E. Beams With 2 x P.E. Beams
|
100mA
180mA – |
100mA
180mA – |
100mA
180mA 260mA |
| Average total consumption current per day
Without P.E. Beams With P.E. Beams With 2 x P.E. Beams
|
2.75 – 3Ah
4.66 – 4.8Ah – |
3.7Ah
5.55Ah – |
3.4 – 4.4Ah
5.31 – 6.3Ah 7.23 – 8.23Ah |
| Average total consumption current per hour
Without P.E. Beams With P.E. Beams With 2 x P.E. Beams
|
0.11 – 0.13A
0.194 – 0.2A – |
0.16A
0.23A – |
0.14 – 0.18A
0.22 – 0.26A 0.3 – 0.343A |
| Recommended storage battery capacity / voltage
|
10.5Ah/24v | 12Ah/24V | 12 – 18Ah/24V |
| Wire Gauge and Length from Battery to Charger board (max)
|
18AWG, 3m | 18AWG, 3m | 18AWG, 3m |
| Solar panel average rated output generation time per day (winter months)
|
4 hours | 4 hours | 4 hours |
| Solar Panel Output voltage / current
|
18V / 1.19A | 18V / 1.75A | 18V / 1.75A |
| Brand | Automatic Technology Australia |
|---|
